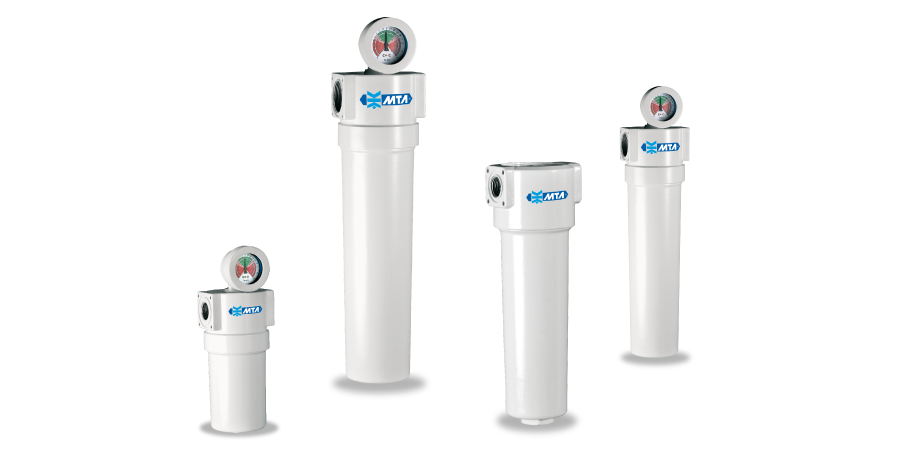

PureTec – HEF

PureTec – HEF

PureTec – HEF - Filters

Air flow 1 – 28 m³/min

Modern industrial processes have reached very high levels of sophistication and require compressed air systems characterised by increasingly higher purity levels; inadequate or inefficient filtration can in fact cause service interruptions, high maintenance costs and loss of productivity. The PureTec - HEF filters were specifically designed to avoid these problems, offering levels of efficiency guaranteed and verified in the laboratory, in a range of configurations designed to suit every type of requirement. The HEF filters consist of an aluminium body containing a filtering element characterised by extremely high efficiency of nominal retention (99.99%) and very low load losses.

Benefits:
  • The aluminium filtering body is protected from corrosion by anodisation with external powder painting;
  • High quality filtering elements;
  • Certified levels of performance and efficiency;
  • Design for typically industrial and challenging conditions;
  • Quick and easy installation;
  • "CleanFit" system for easy replacement of the filter elements;
  • Wide range of accessories and kits for custom solutions;
  • Reduction in maintenance costs and plant downtime.

Technical specifications:
  • Anodised die-cast aluminium body and external powder painting;
  • Support of the filtering material in stainless steel;
  • Means of support in non-woven polyester fabric;
  • 4 degrees of filtration: P,M,S,A;
  • Maximum operating pressure: 16 bar(g);
  • Maximum operating temperature: +65°C.

Accessories:
  • Clogging indicator;
  • Aluminium differential pressure gauge;
  • Magnetic differential pressure gauge with alarm dry contact;
  • Magnetic differential pressure gauge with alarm led;
  • Wall mounted kit HEF 005-HEF 070;
  • Pack mounting kit for 2-3 filters: HEF 005-HEF 070;
  • Floating internal discharger;
  • Externally mounted floating discharger;
  • Timed discharger;
  • Manual discharger;
  • Capacitive electronic discharger.
