Air-cooled industrial liquid chillers.
Nominal cooling capacity 6 – 23 kW
TAE reliability, in an even more compact design
TAE G Compact liquid chillers, with compact dimensions, a non-ferrous hydraulic circuit and a refrigerant with reduced environmental impact, are the perfect synergy between the reliability and versatility of MTA's process chillers and our commitment to accelerating the adoption of sustainable technology for thermal systems.

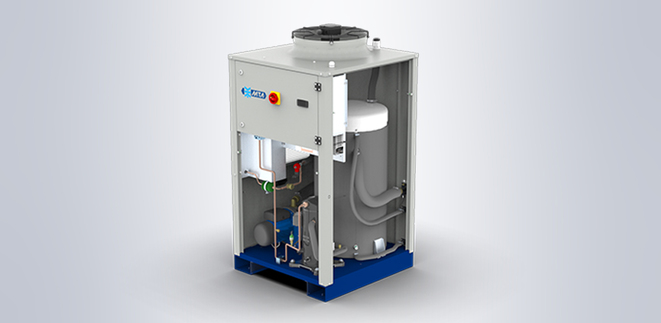

In-tank evaporator : the game changer
TAE G Compact’s in-tank evaporator is the ideal solution for numerous industrial applications, combining a robust and easy to apply design with precise control and guaranteed continuous operation in even the most diverse and challenging operating conditions.
What makes it unique?
Compact dimensions
The compact layout and reduced footprint allow indoor installation even where space is limited, such as near workbenchesXclose to machine tools.
Extended operating limits
Water outlet temperatures from -5 °C to +30 °C cater for the needs of numerous industrial applications. Ambient temperatures range from -20 °C to + 45 °C.
Low GWP refrigerant
TAE G Compact is the answer to the European F-Gas regulation on fluorinated gases. R513A refrigerant combines a reduced GWP with an A1 safety class, allowing simple indoor installation.
Guaranteed operation
Multiple safety devices, including a water differential pressure switch (mod. C40÷C70) and internal hydraulic by-pass, increase reliability and ensure a long operating life. Each unit is extensively tested before leaving the factory.
Energy efficiency
The efficiency of TAE G Compact liquid chillers meets the limits imposed by ErP SEPR HT reg. 2016/2281 directives and is guaranteed by Eurovent certification.
Plug & Play system
The integrated hydraulic module and wide range of options and kits allows for perfect adaptation to any type of application. TAE G Compact arrives ready for installation and operation.
The solution for the application
TAE G Compact is the ideal solution for multiple applications including mechanical engineering, machine tools, lasers, medical devices and many more beyond.
Easy to use
The removable panels provide easy access to both electrical components and hydraulic/mechanical parts ensuring quick maintenance.
Technical features
| Mode | Compressors | Refrigerant | Heat exchanger | Fan |
|
|
R513A |
|
|
Standard features
- Low GWP R513A refrigerant;
- Hermetic scroll compressor;
- Axial suction fan with AC motor;
- Finned coil evaporator with copper tubes and aluminum fins, integrated inside a plastic atmospheric pressure storage tank;
- Aluminum microchannel condensing coil complete with protective metal mesh filter;
- P3 (3 barg) centrifugal pump;
- IP54 protection rating electrical panel (IPX4 for mod. C15 ÷ C30);
- Parametric controller;
- Phase monitor (for mod. C40÷C70).
Options
- Dual frequency version (400/3/50 – 460/3/60);
- Low ambient air temperature (down to -20 °C);
- High leaving water temperature (12 °C ÷ 30 °C);
- Temperature close control (hysteresis ± 0,5K);
- Protective painting for condensing coil;
- P5 pumpXwithout pump;
- Multipole industrial connectors;
- Connectivity kit;
- Tank level sensor.
Kits
- Automatic hydraulic by-pass;
- Water filter;
- Check valve and solenoid valve;
- Dynamic set-point;
- Wheels kit;
- Remote display;
- Supervision and monitoring kit (RS485 adapter and xWEB300D PRO).
