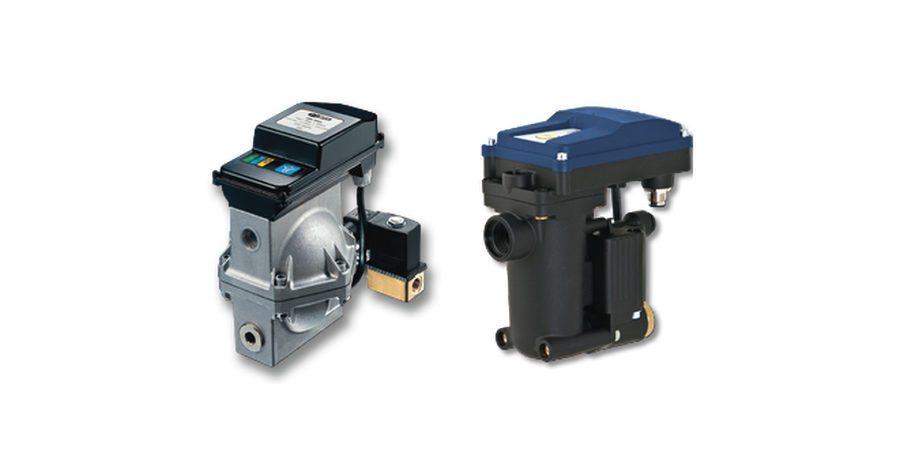

LiquiPro – CE/CDE - Capacitive condensate drain

Condensate, oil and other impurities present in compressed air systems can cause serious damage if they are not properly removed. These impurities are separated from the compressed air at various points in the system; the purpose of the condensate discharger is  to remove them to ensure high quality processing of the compressed air. The CE/CDE LiquiPro capacitive electronic condensate dischargers allow the controlled discharge of condensate, removing any loss of compressed air. A careful selection of materials and a precise design allow easy installation and provide years of smooth operation even in extreme conditions.

Benefits
Capacitive level sensor for high reliability and precise control.
Energy saving: no loss of compressed air.
Simple and robust construction not subject to wear.
Standard body of corrosion resistant (CE1618 plastic PA 6 ; CE1624 – CE1658 – CDE2050 alluminium).
Wide diameter discharge valve opening
No need for initial or seasonal programming.
Only one necessary spare part: maintenance time reduced to a minimum

Technical specifications
Ignition indication LED of the discharger and alarm condition
Alarm clean contact
Discharge test button
Easily accessible stainless steel filter
Power supply 230/1/50-60
Maximum operating pressure CDE 2050: 20 barg.
Maximum operating pressure EC 1618-1654: 16 barg.

Accessories
Optional heating element CDE 2050
Power supply 115/1/50-60
Power supply 24V DC CDE 2050
Certifications
  • EAC
